| Quantity: | |
|---|---|

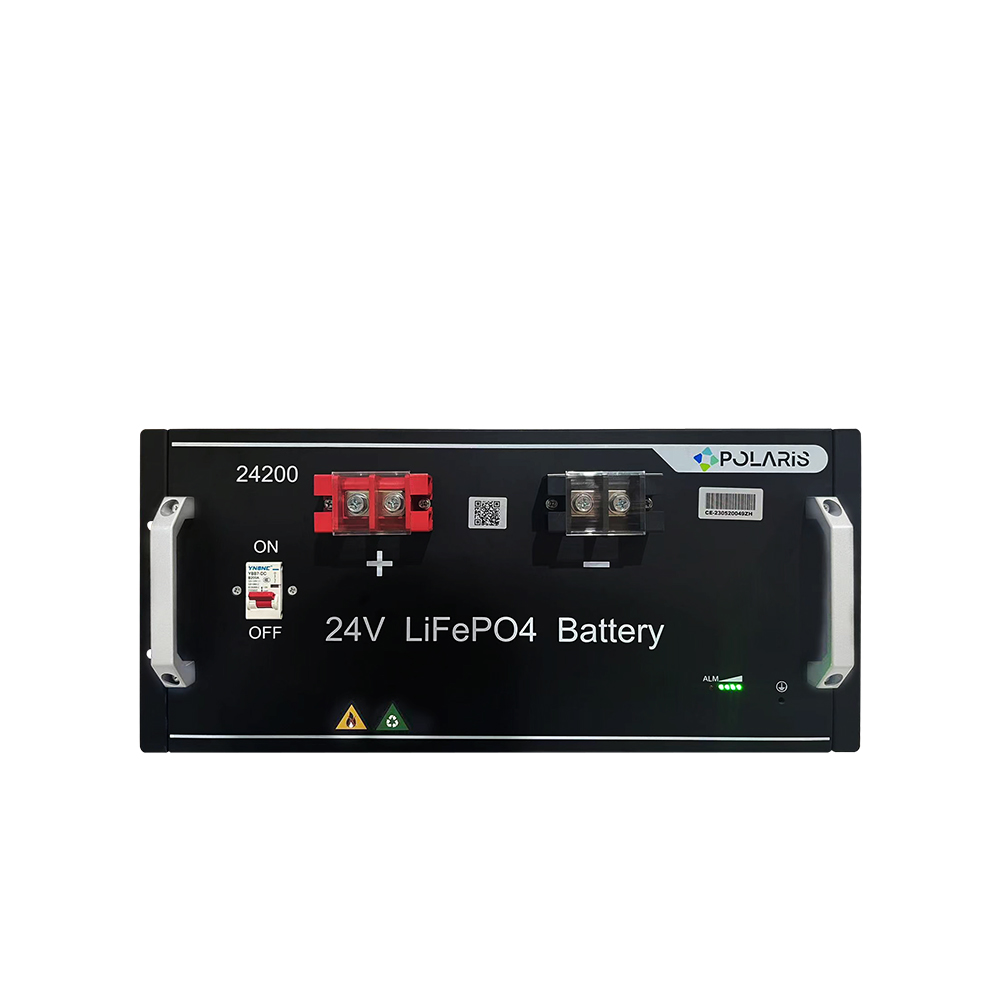

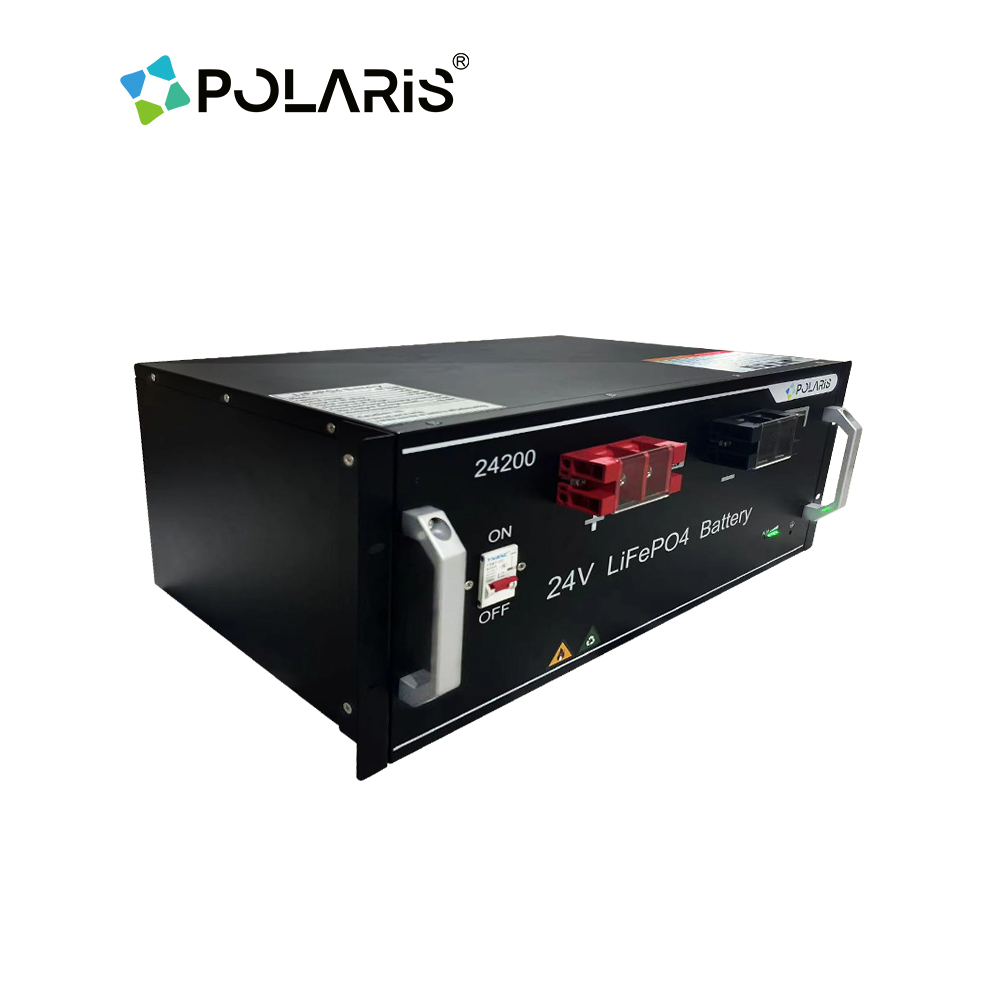

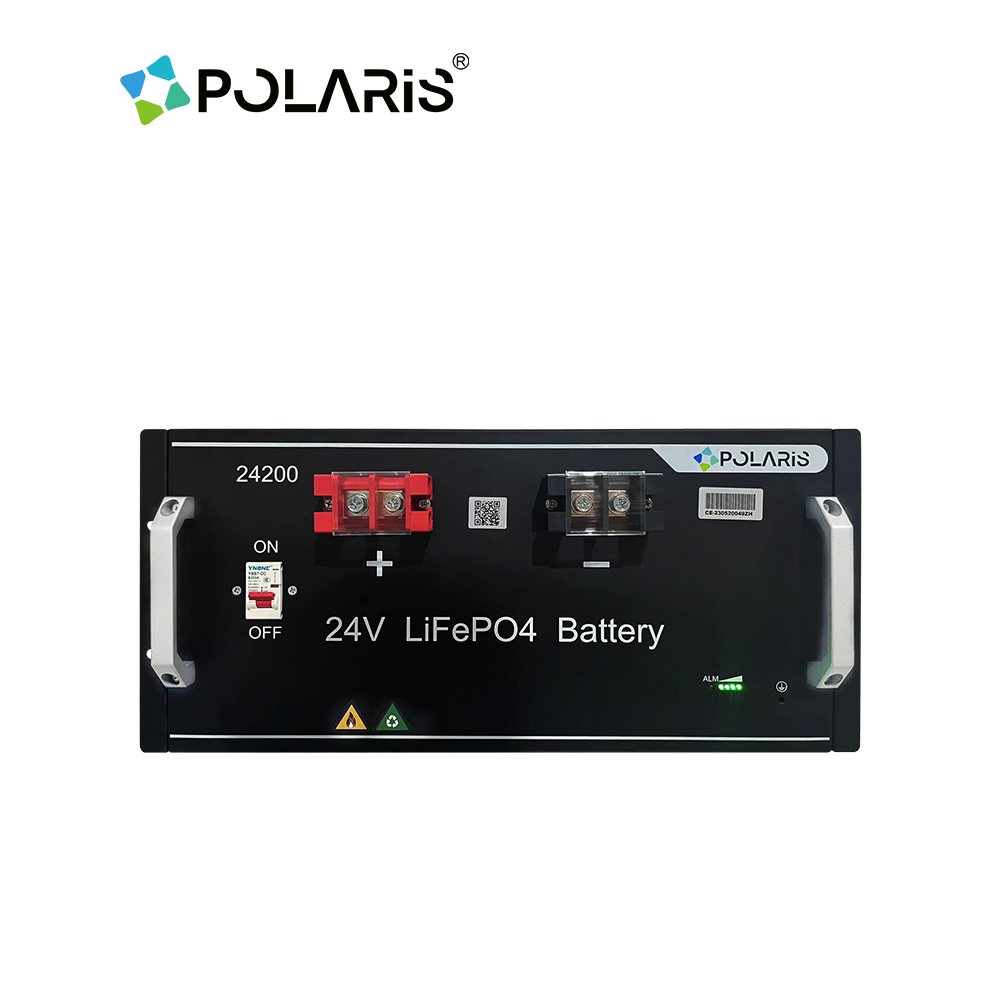

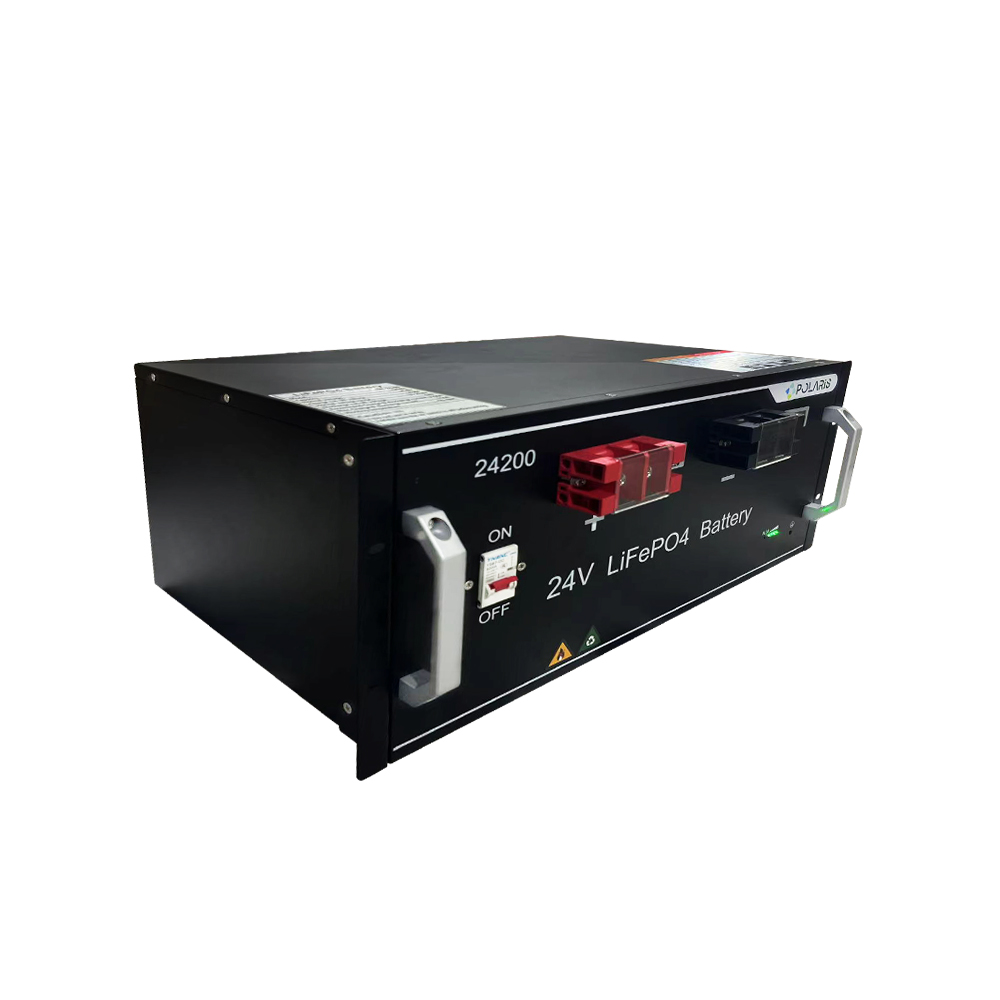

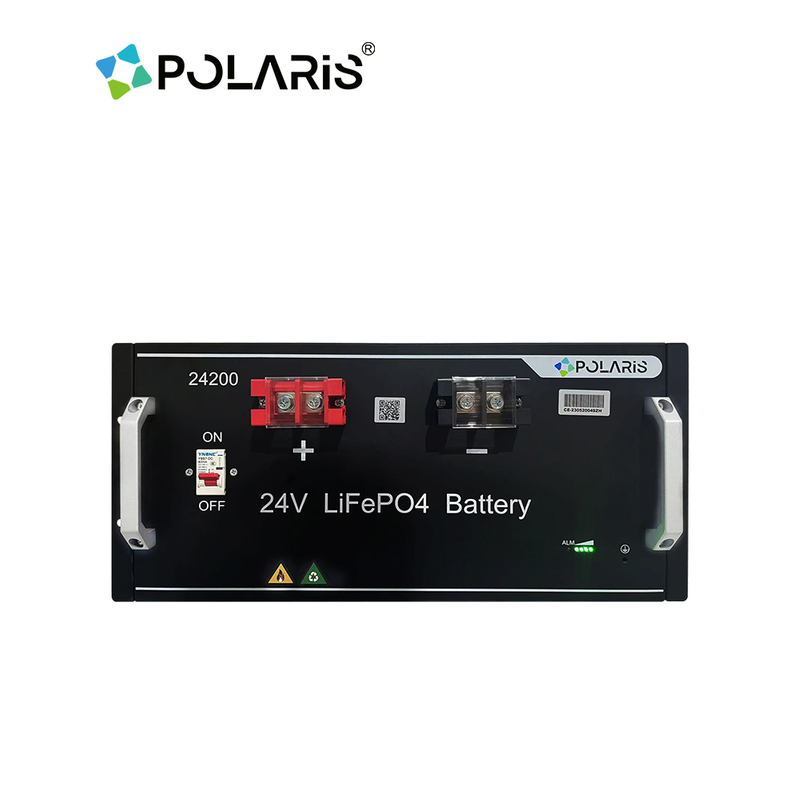

Model | LBT-24200 |
Capacity | 5KWH |
Normal voltage | 25.6V |
Normal voltage range | 24-28.8V |
Charge cut-off voltage | 28.8V |
Discharge cut-off voltage | 24V |
Max.Charge & discharge current | 150A |
Recommend Charge & discharge current | ≤100A |
Normal output power | 2560W |
Max.Output power | 3840W |
Discharge DOD | ≥98% |
Parallel connection amount | 1-6 |
Ingress protection | IP21 |
Cycle times | ≥3200@25℃ |
Working temperature | -10~60℃ |
Net weight(KG) | 38kg |
Gross weight | 40kg |
Product dimension | 520*385*258mm |
Package dimension | 550*415*295mm |
