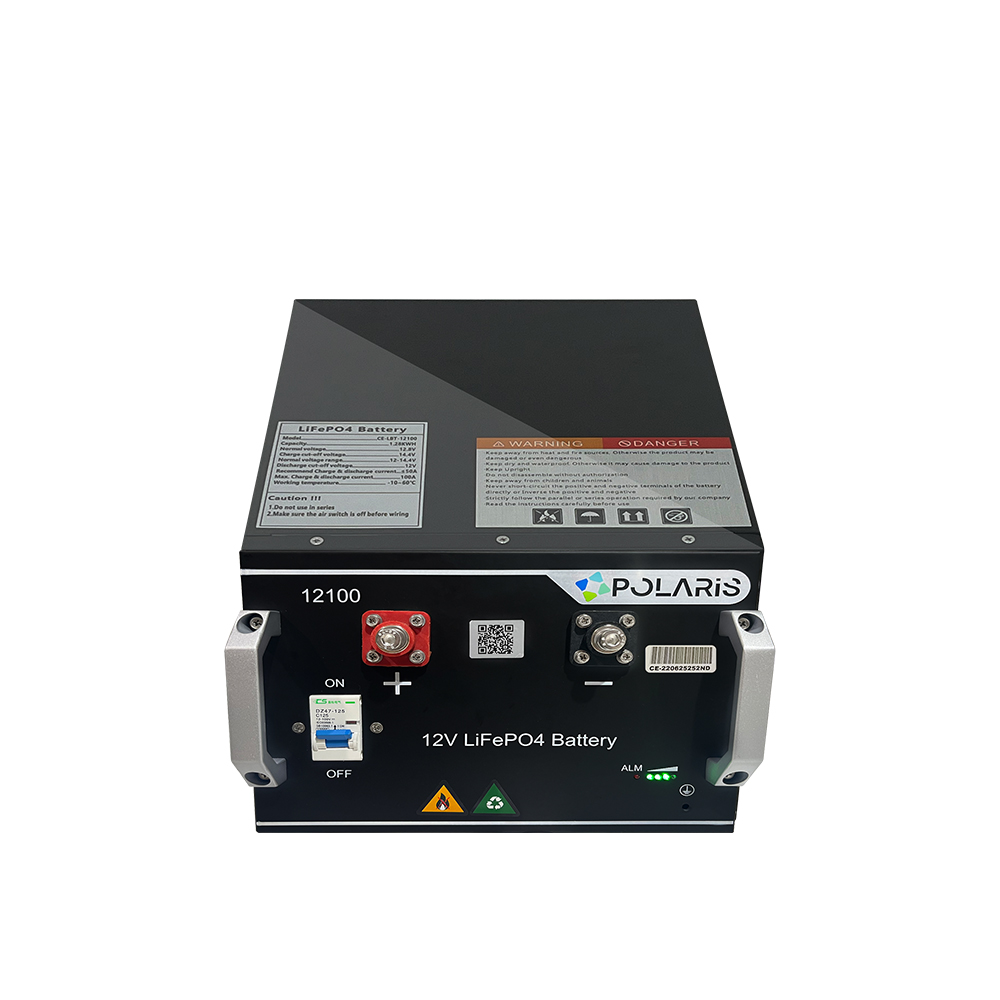

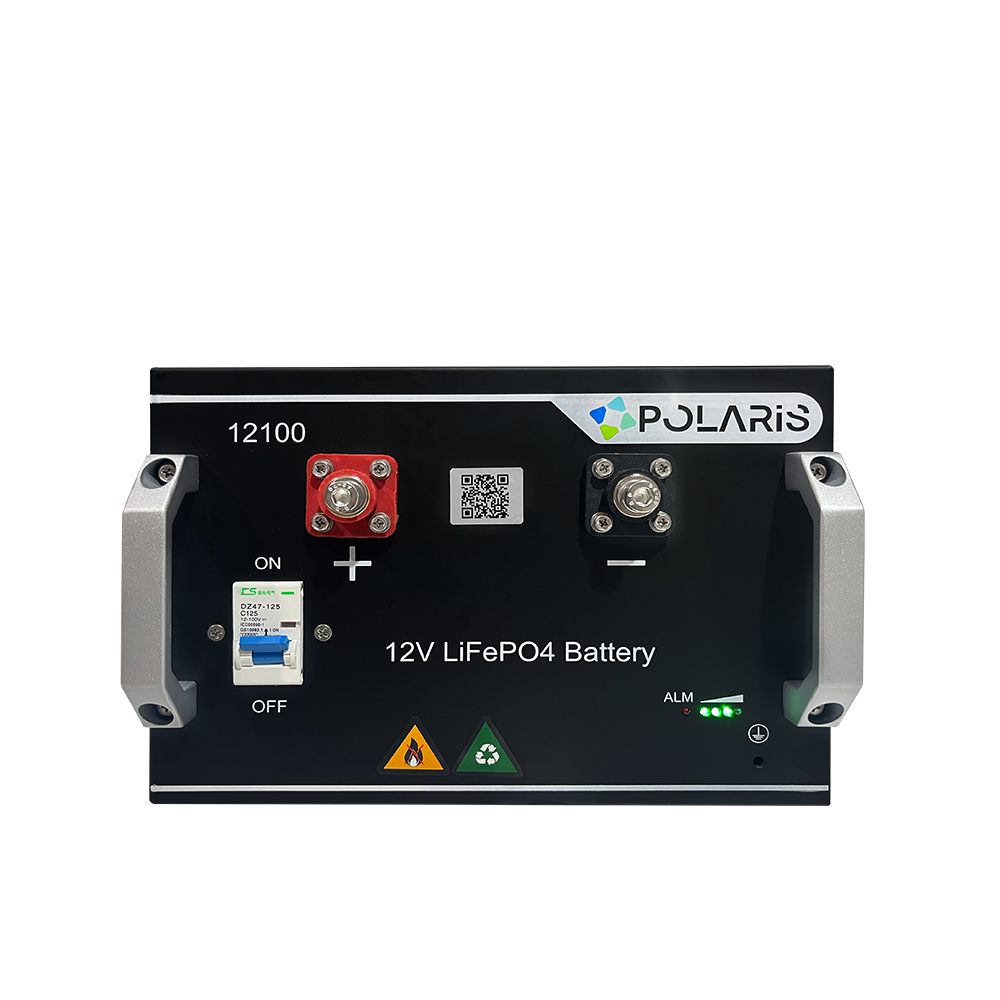

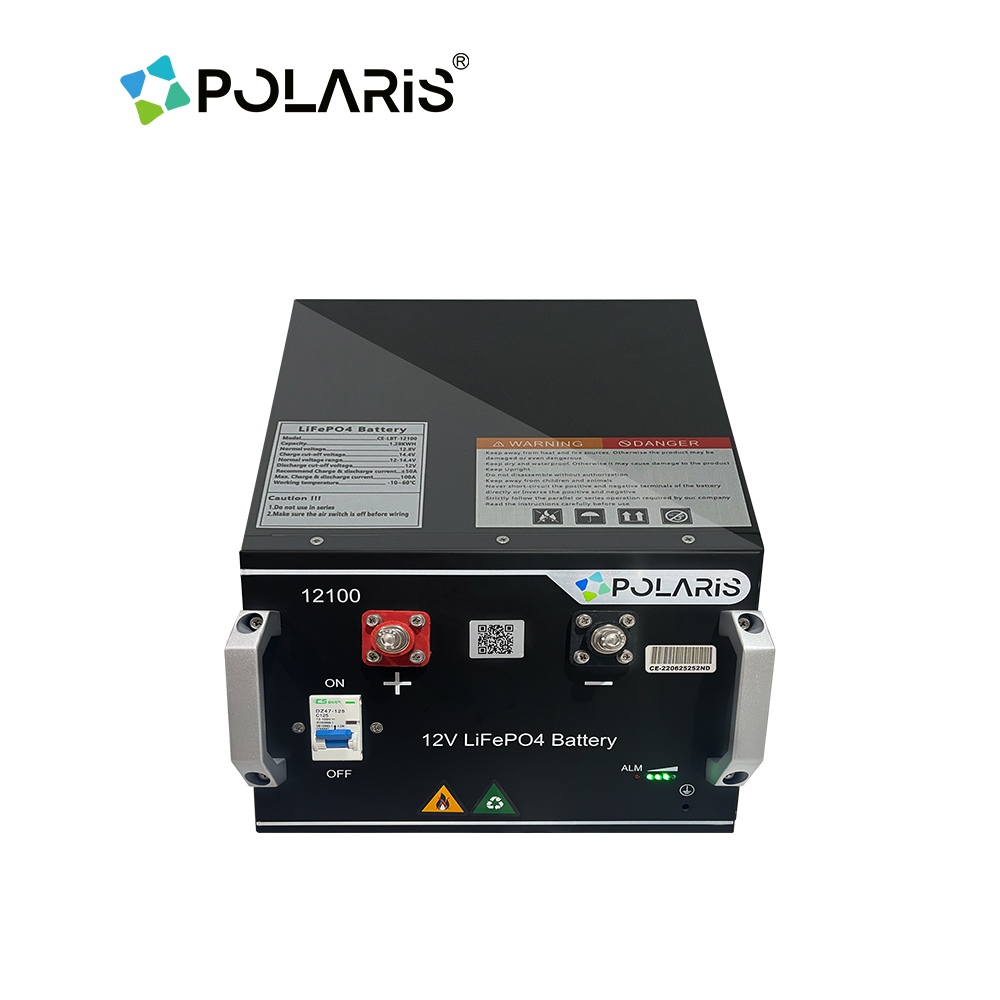

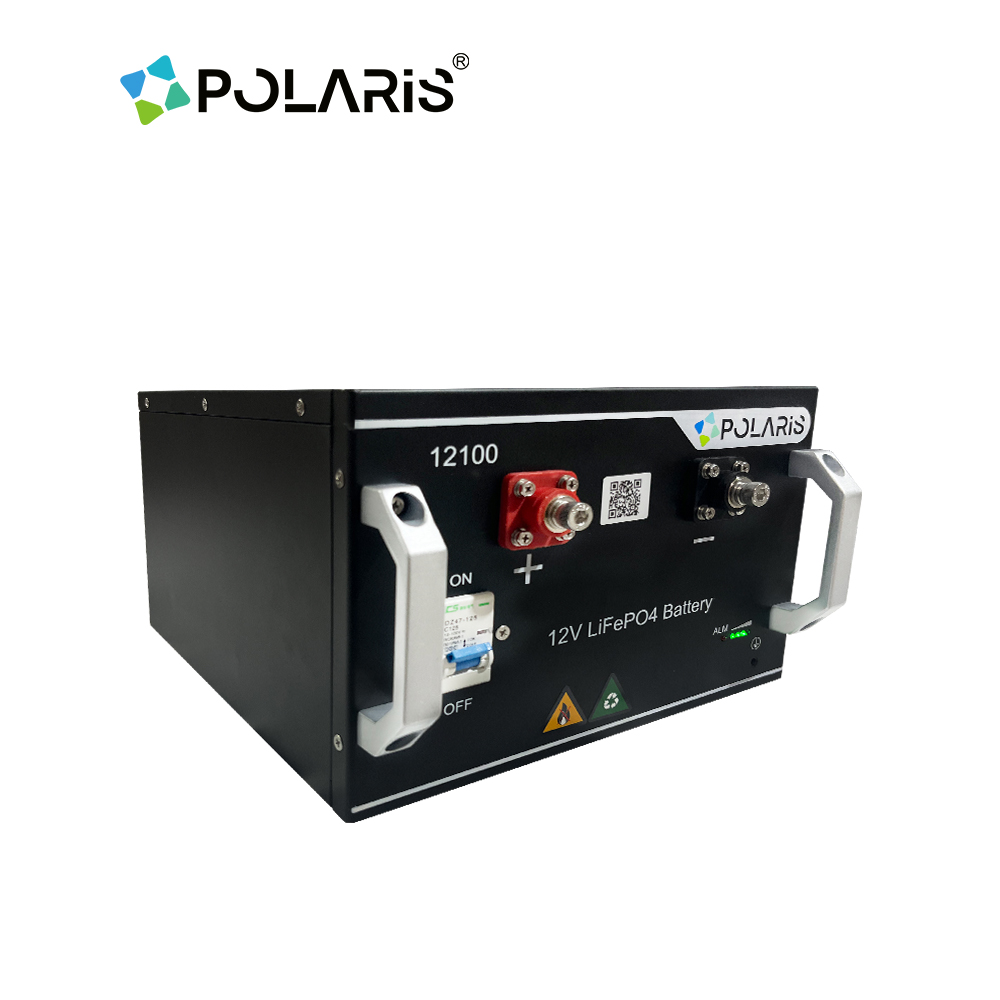

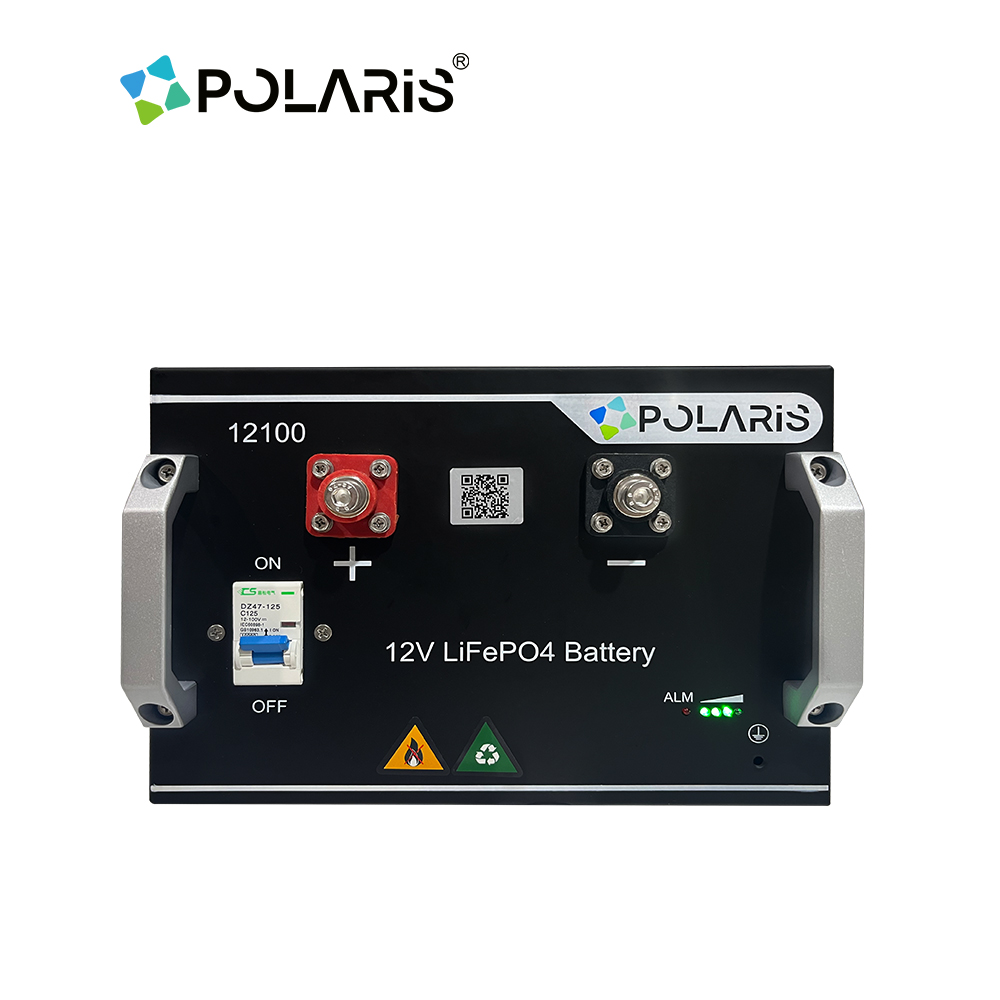

Polaris Energy LiFePO4 Battery Pack LBT-12100

Capacity

1.28KWH

Normal voltage

12.8V

Charge cut-off voltage

14.4V

Normal voltage range

12-14.4V

Discharge cut-off voltage

12V

Recommend Charge & discharge current

≤50A

Max.Charge current

50A

Max.discharge current

100A

Normal output power

640W

Max.Output power

1280W

Discharge DOD

≥98%

Parallel connection amount

1-6

Ingress protection

IP21

Cycle times

≥3200@25℃

Working temperature

-10~60℃

Net weight(KG)

17.5kg

Gross weight

18kg

Product dimension

355*280*195mm

Package dimension

385*312*232mm
